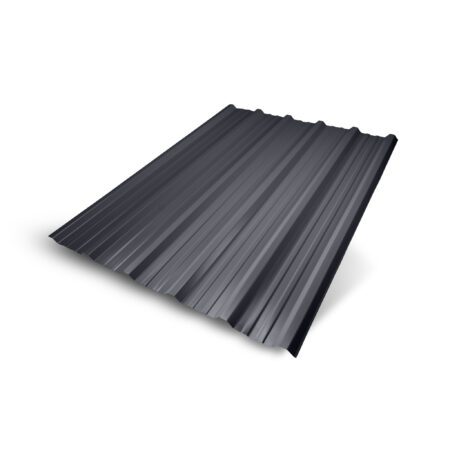

Diamond Plus

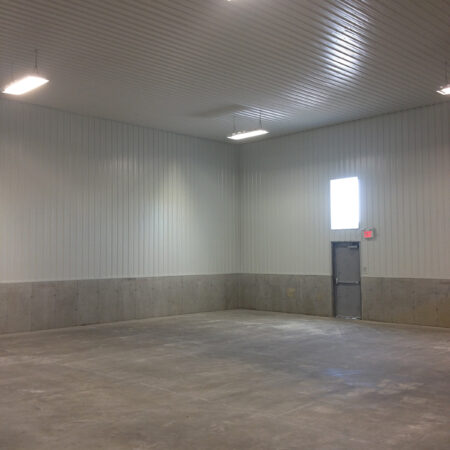

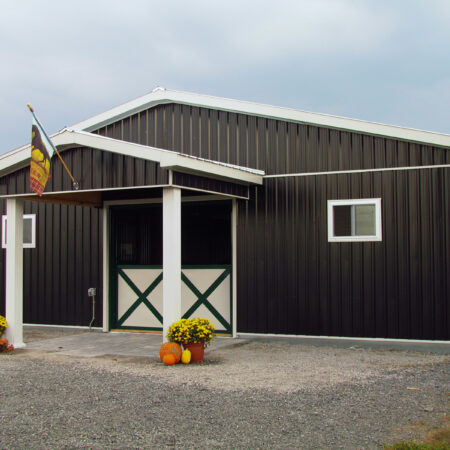

This profile is ideal for interior and exterior siding as well is an excellent choice for ceilings, especially the underside of decks to create additional protected space.
- Residential

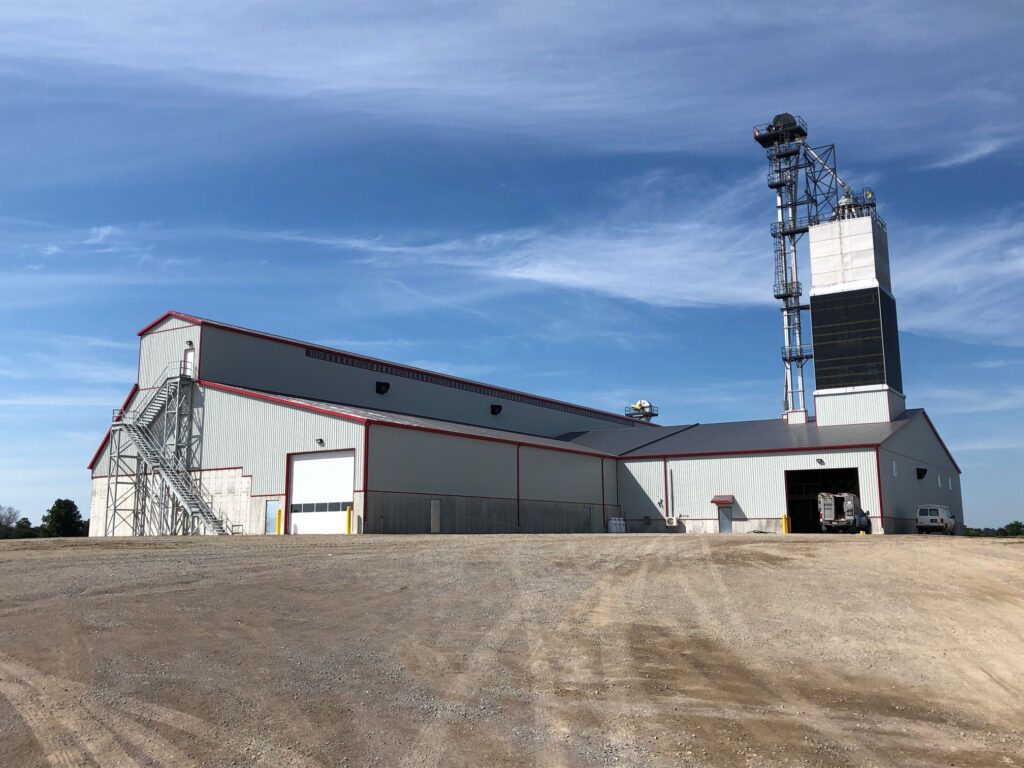

- Agricultural
- Commercial
- Cottage
The versatility of this profile also allows it to be used for roofing as well.
This profile is typically offered in high tensile 29 gauge but is also available in 26 gauge.
Available Colours
Textured Matte Finish
- Textured Black
- Textured Charcoal
- Textured Dark Graphite
- Textured Dark Brown
Standard Colours
- Bright Red
- Black
- Bone White
- Buckskin
- Dark Graphite
- Cambridge White
- Dark Red
- Charcoal
- Earth Green
- Coffee Brown
- Heron Blue
- Dark Brown
- Galvalume
- Melcher's Green
- Regent Grey
- Slate Blue
- Stone Grey
- Tile Red
- White White
Woodgrains
- Canyon
- Espresso
- Barnboard
On-screen colours are an approximation for preview only. Want to see a swatch sample? Connect with a Product Specialist.
Product
Specifications
Material Options
- SMP Pre-Painted available in 24ga – 29ga
- SMP Pre-Painted TEXTURED available in 24ga – 29ga
- PVDF (Kynar®) Pre-Painted Steel available in 24ga
- PVDF (Kynar®) Pre-Painted WOODGRAIN Steel available in 24ga
- Galvalume® Steel - available in 24ga – 29ga
Specification Highlights
- 35” panel coverage
- Exposed fastener system
- Minimum roof slope is 3/12 (contact our office for lower slope guidance)
- Used for exterior roofing and siding, and interior ceiling and cladding
- Can be installed on strapping or direct to substrate or in many cases over existing shingles. Contact our office for specifics.
- 3/4 trapezoid ribs on 7” centers with intermediate stiffening ribs for added strength.
- Available in reverse roll
- Click on Profile Spec Sheet PDF for recommended trims
