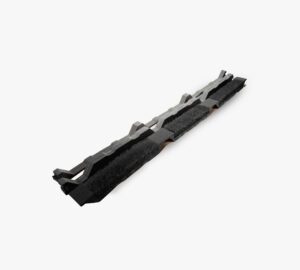

Delta Series Roof Closures
Delta

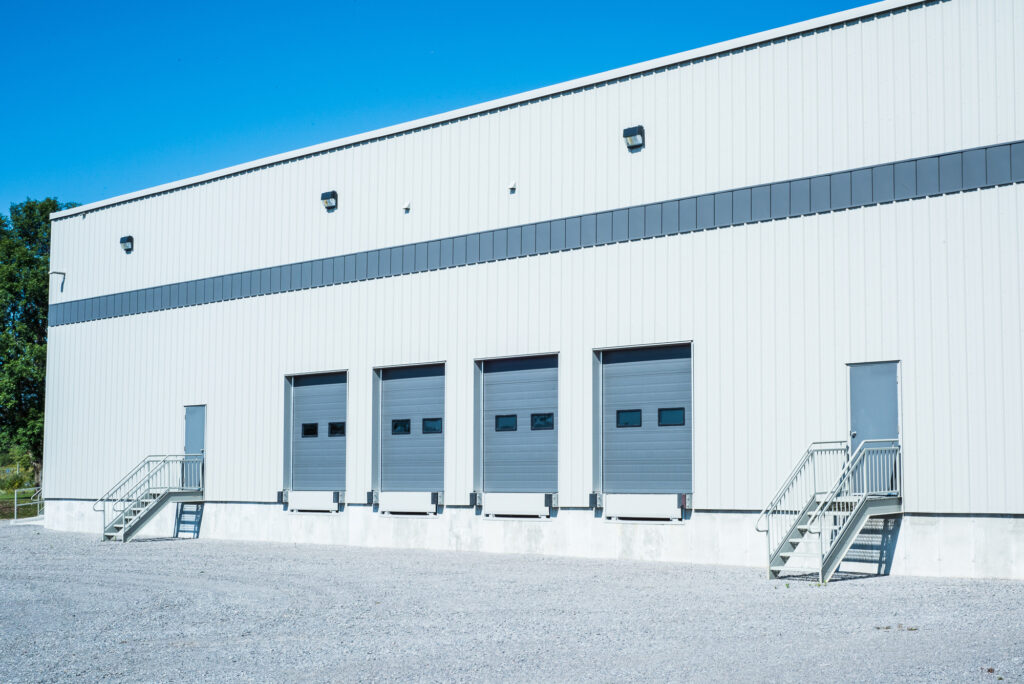

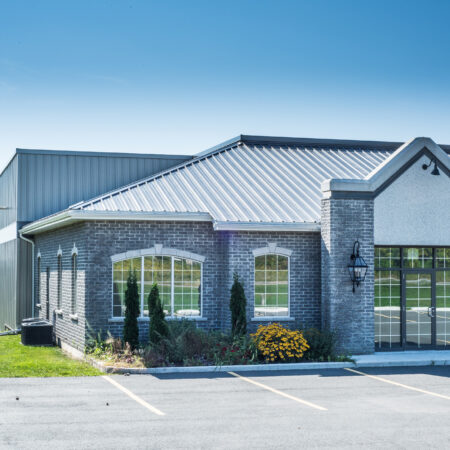

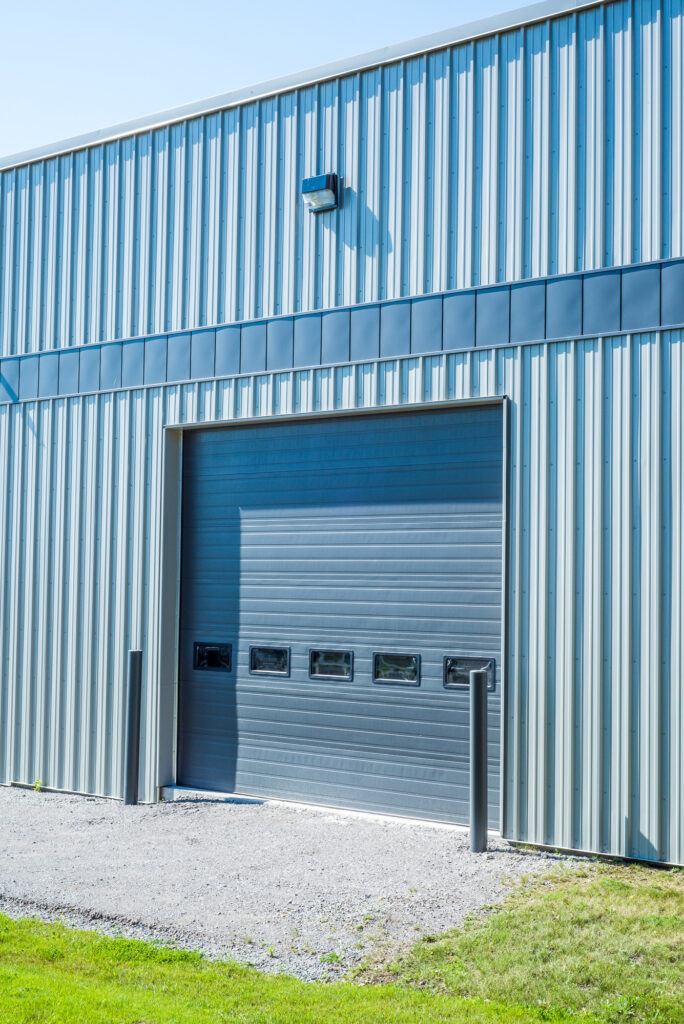

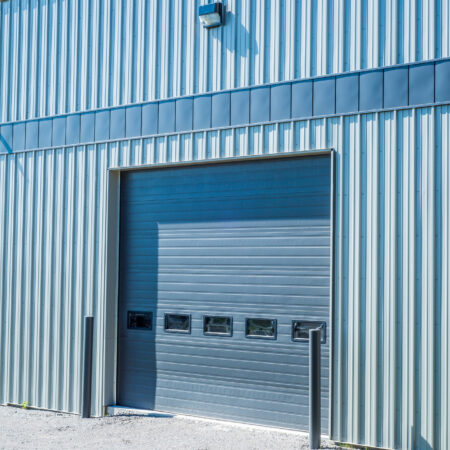

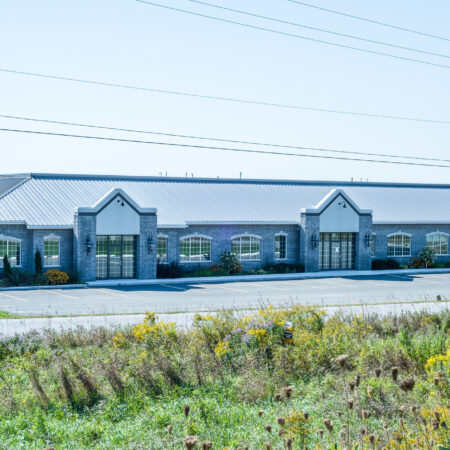

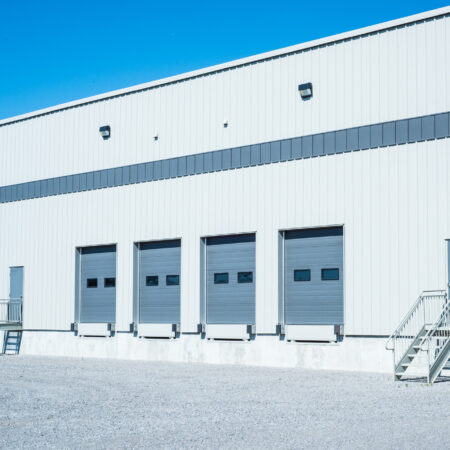

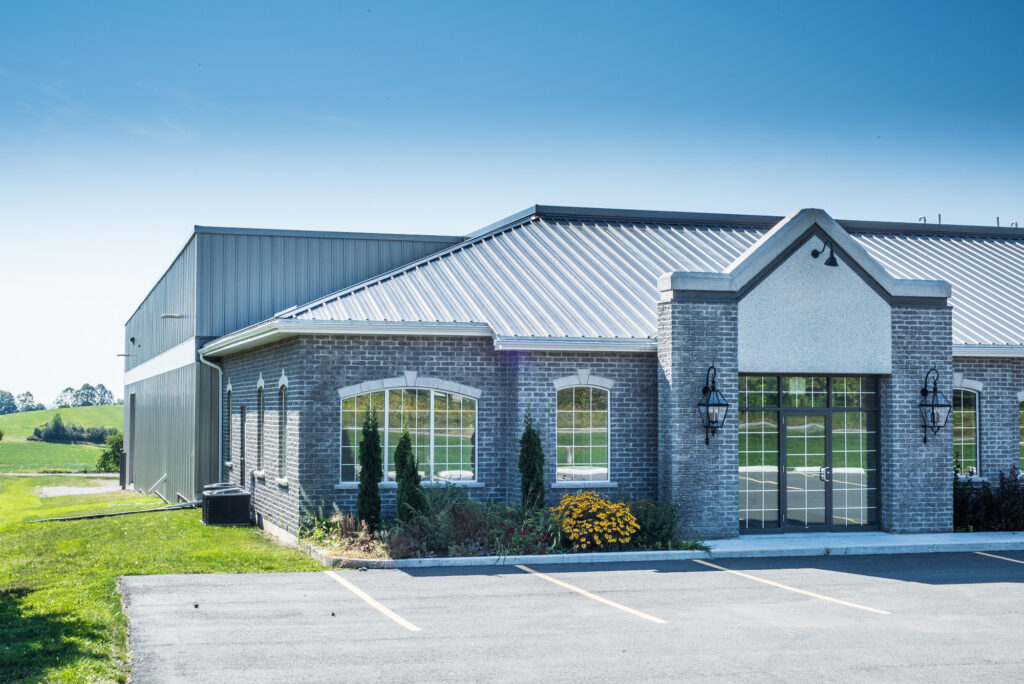

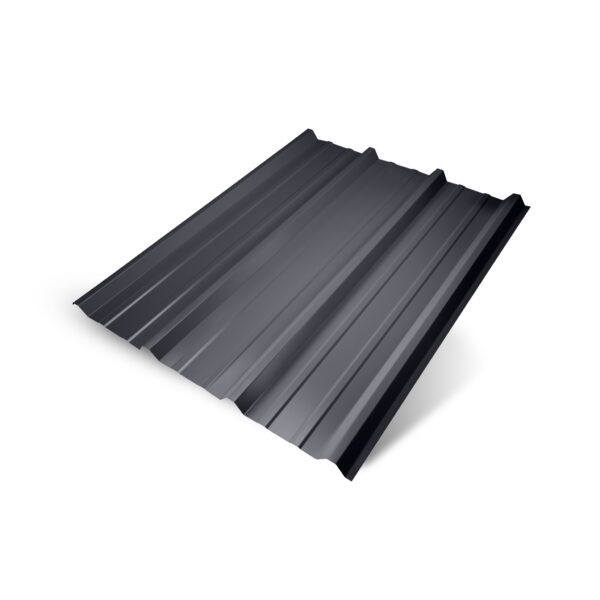

With exceptional coverage and strength the Delta profile is the choice for commercial or industrial roofing and siding projects.
- Residential
- Agricultural
- Commercial
- Cottage

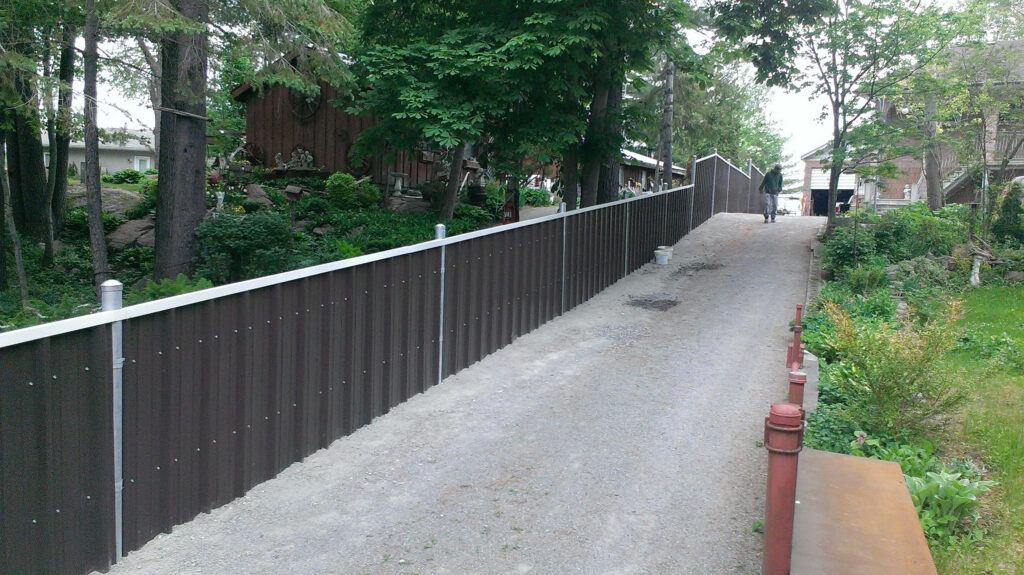

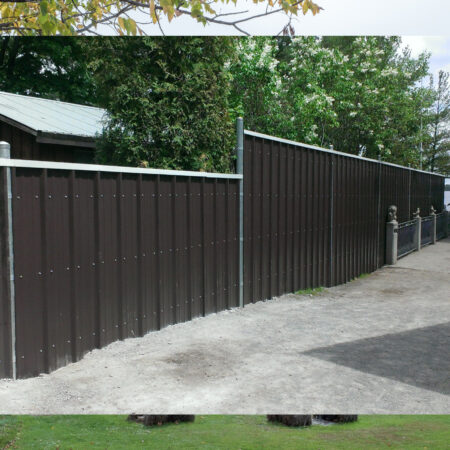

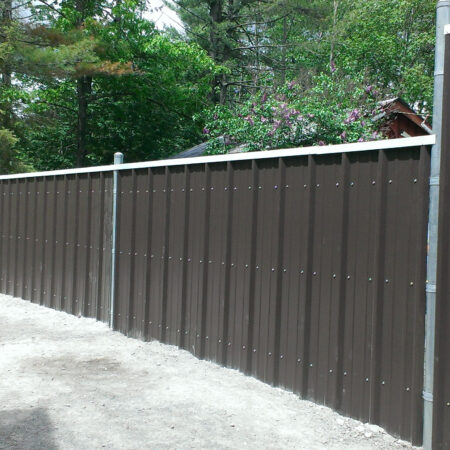

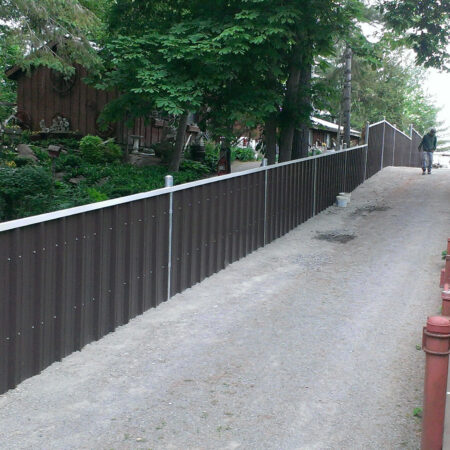

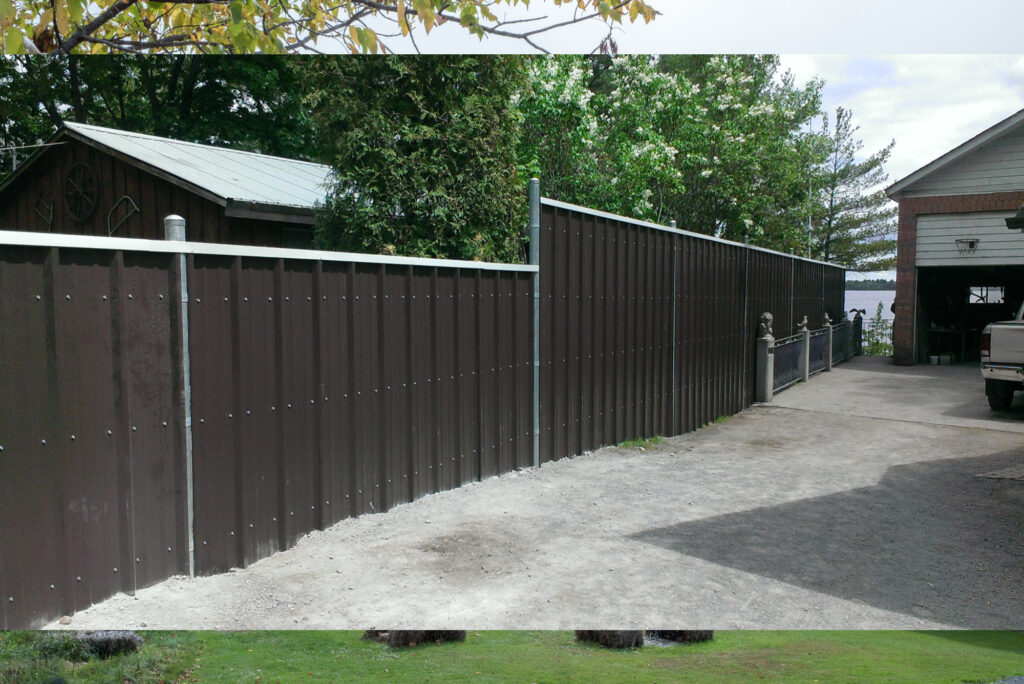

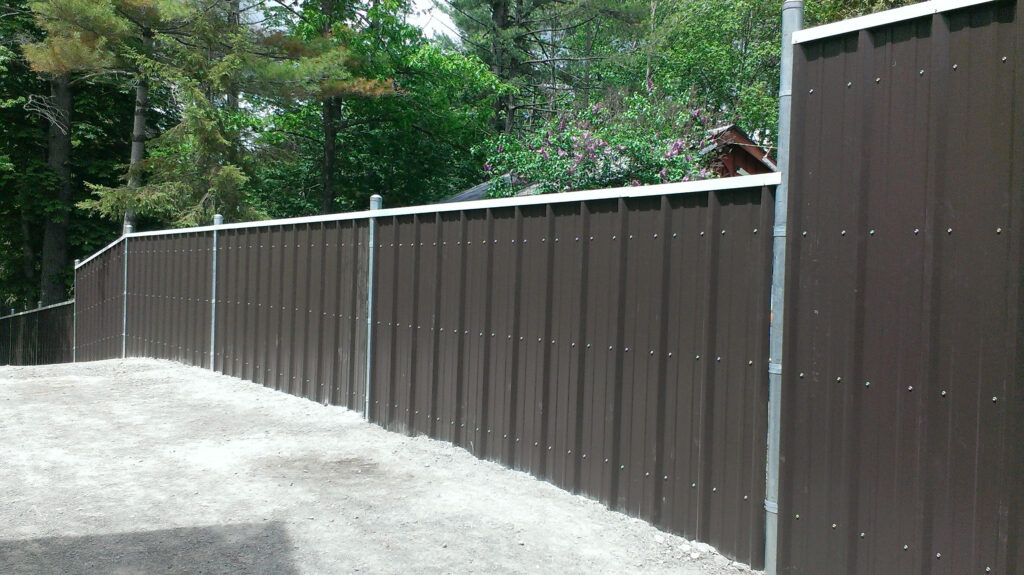

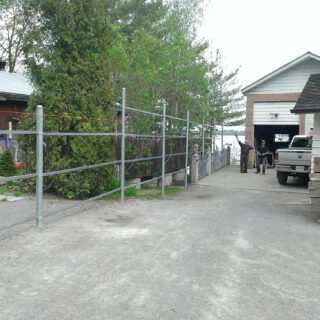

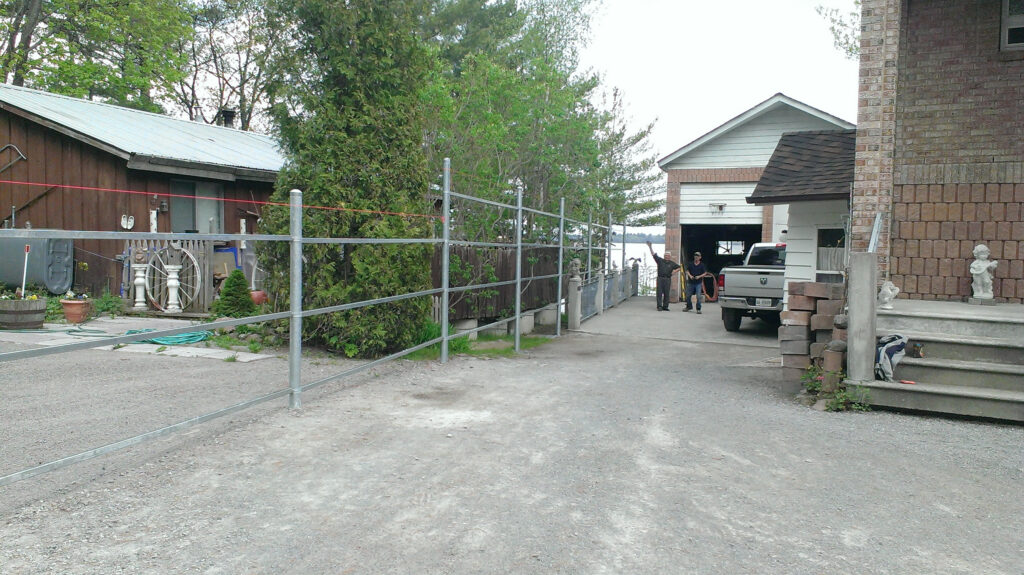

The rigidity of this profile also makes it well suited to meet agricultural or fencing needs.
This profile is typically offered in 26 gauge, but is also available in 24 gauge. Please contact one of our Product Specialists for available colour options.
Available Colours
Textured Matte Finish
- Textured Dark Brown
- Textured Black
- Textured Charcoal
- Textured Dark Graphite
Standard Colours
- Bright Red
- Black
- Bone White
- Buckskin
- Cambridge White
- Dark Graphite
- Charcoal
- Dark Red
- Coffee Brown
- Earth Green
- Dark Brown
- Heron Blue
- Galvalume
- Melcher's Green
- Regent Grey
- Slate Blue
- Stone Grey
- Tile Red
- White White
Woodgrains
- Canyon
- Espresso
- Barnboard
On-screen colours are an approximation for preview only. Want to see a swatch sample? Connect with a Product Specialist.
Product
Specifications
Material Options
- SMP Pre-Painted available in 22ga – 26ga
- SMP Pre-Painted TEXTURED available in 24ga – 26ga
- PVDF (Kynar®) Pre-Painted Steel available in 22ga and 24ga
- PVDF (Kynar®) Pre-Painted WOODGRAIN Steel available in 24ga
- Galvalume® Steel - available in 22ga – 26ga
Specification Highlights
- 36” panel coverage
- Exposed fastener system
- Minimum roof slope is 3/12 (contact our office for lower slope guidance)
- Used for exterior roofing and siding, and interior ceiling and cladding
- Can be installed on strapping or direct to substrate or in many cases over existing shingles. Contact our office for specifics.
- 1 ¼” deep trapezoidal ribs 12” on center with shallow ancillary ribs for maximum strength
- Click on Profile Spec Sheet PDF for recommended trims
Related Products
-
-

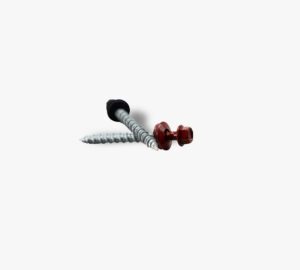

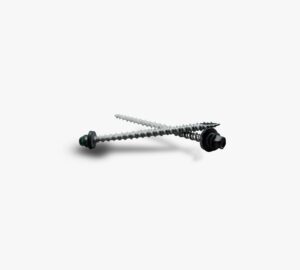

Wood Grip Fasteners Accessories / Fasteners
-

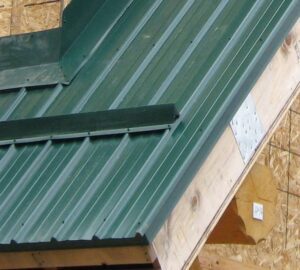

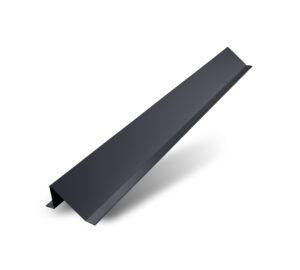

Snow Stop Trims & Flashing / Roofing Trims & Flashings
