This Profile has Multiple Variations

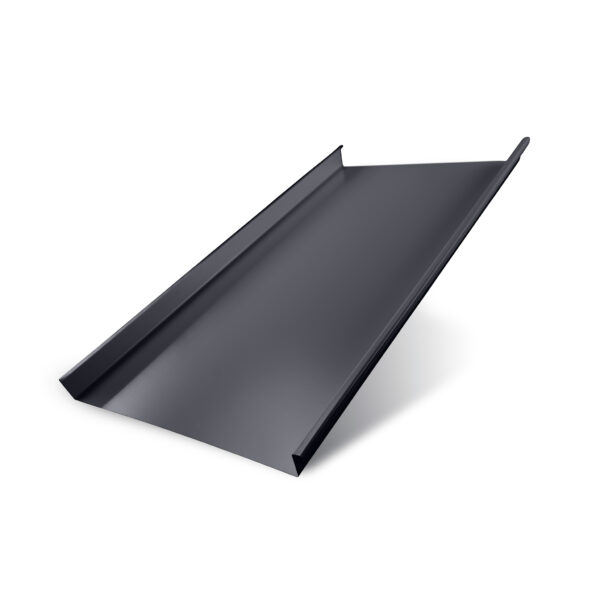

The hidden fastener system will transform any roof line into a show piece. Available in a Mechanical Seam or user-friendly Snap Lock design. Additionally this profile can be used to emulate a modern board and batten look.
This profile is available in 1″ and 1.5″ and is offered in 26, 24 and 22 gauge. Please contact one of our Product Specialists for available colour options.
Available Colours
Textured Matte Finish
- Textured Black
- Textured Charcoal
- Textured Dark Graphite
- Textured Dark Brown
Standard Colours
- Bright Red
- Black
- Bone White
- Buckskin
- Dark Graphite
- Cambridge White
- Dark Red
- Charcoal
- Earth Green
- Coffee Brown
- Heron Blue
- Dark Brown
- Galvalume
- Melcher's Green
- Regent Grey
- Slate Blue
- Stone Grey
- Tile Red
- White White
Woodgrains
- Canyon
- Espresso
- Barnboard
On-screen colours are an approximation for preview only. Want to see a swatch sample? Connect with a Product Specialist.
Product
Specifications
Material Options
- SMP Pre-Painted available in 22ga – 26ga
- SMP Pre-Painted TEXTURED available in 24ga – 26ga
- PVDF (Kynar®) Pre-Painted Steel available in 22ga and 24ga
- PVDF (Kynar®) Pre-Painted WOODGRAIN Steel available in 24ga
- Galvalume® Steel - available in 22ga – 26ga
Specification Highlights
- Approximately 16” panel coverage – see Profile Spec Sheet for coverage options
- Hidden fastener system
- Minimum roof slope is 2/12 (contact our office for lower slope guidance)
- Used for exterior roofing and siding, and interior cladding
- Available in 3 locking options – Snap Lock with Nail Strip, Snap Lock with Clip and Mechanical Lock
- Available in 1” and 1.5” rib height
- Available with and without minor rib
- Recommended to install onto a flat surface secured to a structural framing or flat wall surface
- Click on Profile Spec Sheet PDF for recommended trims
